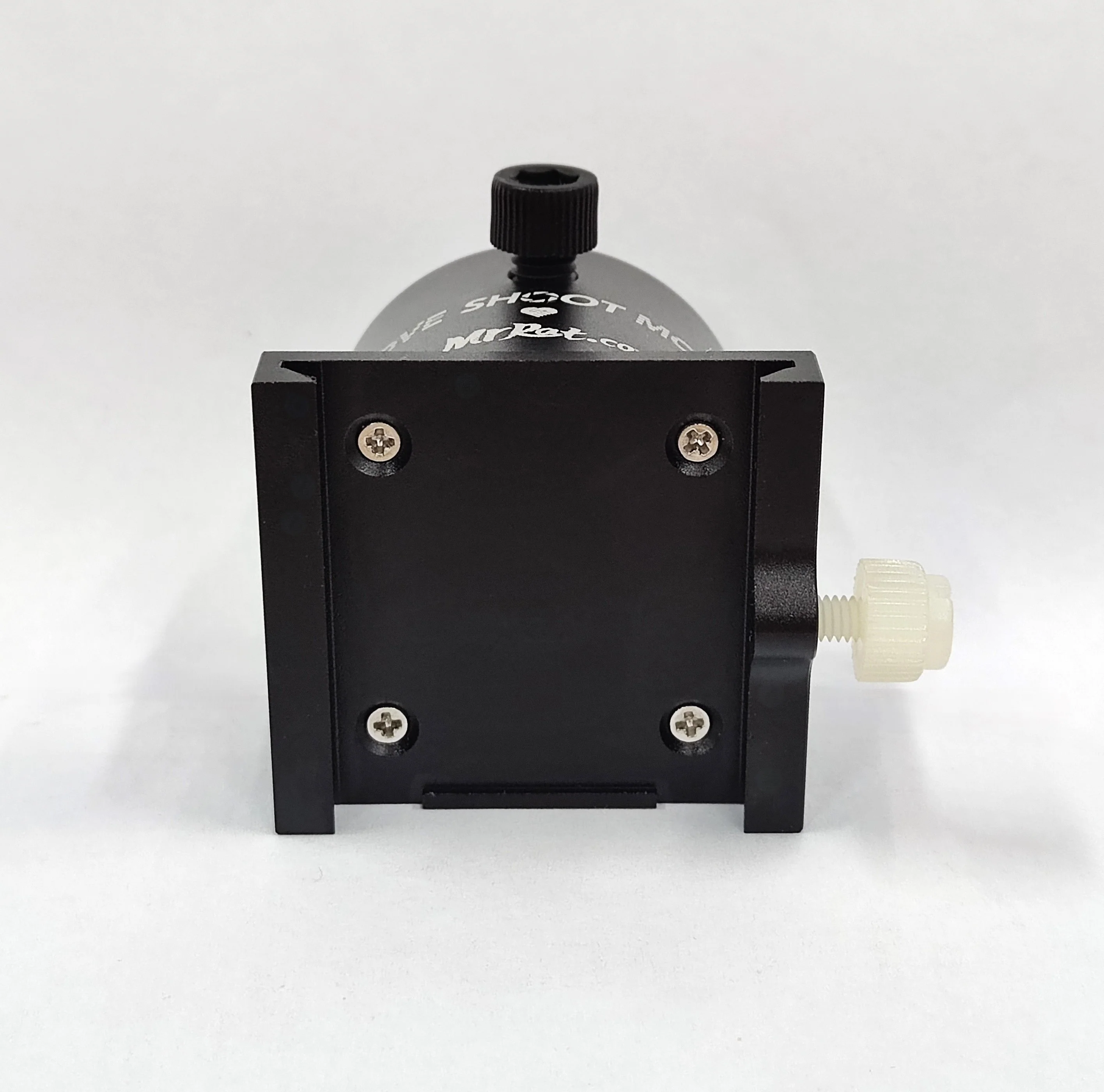

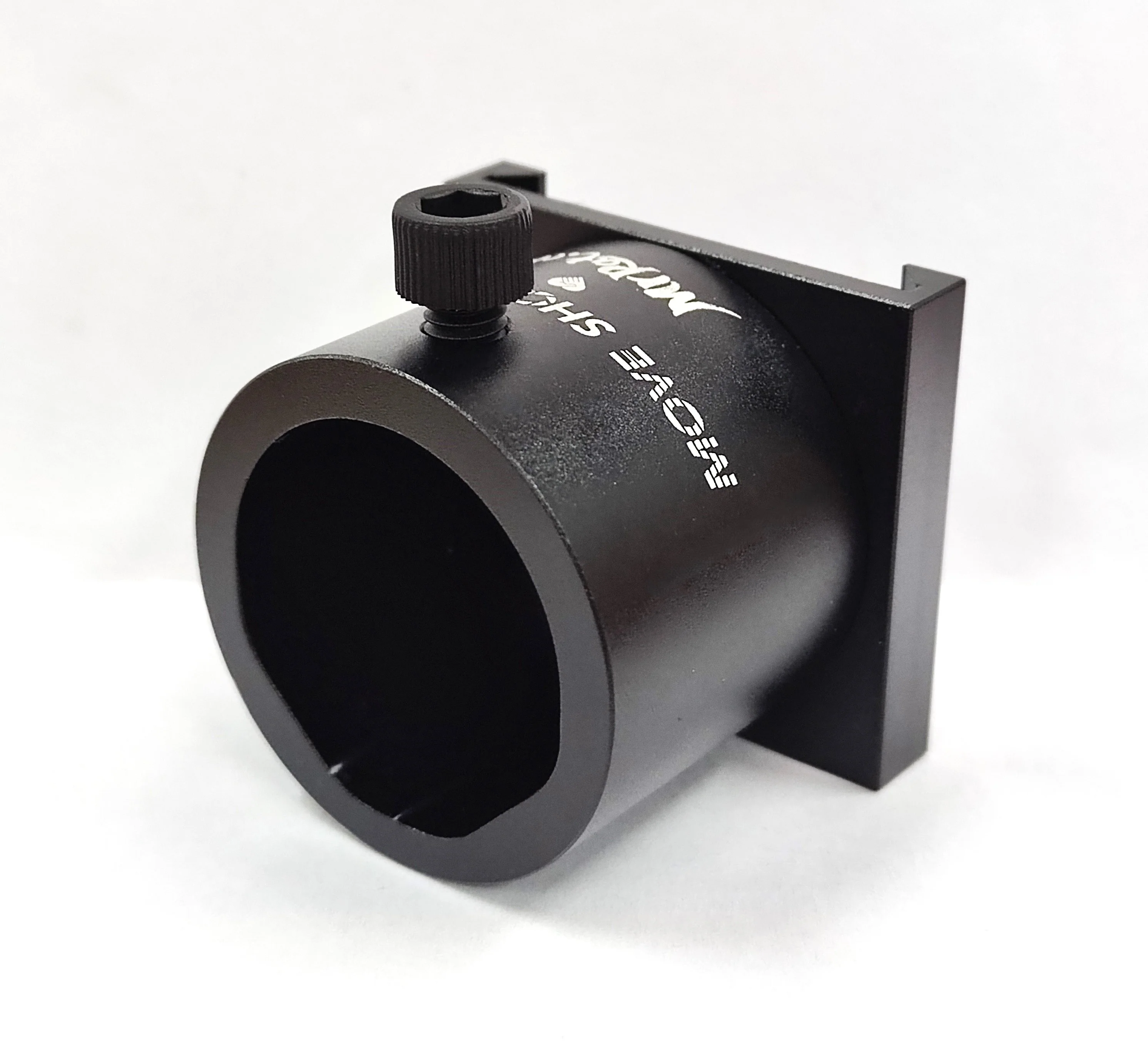

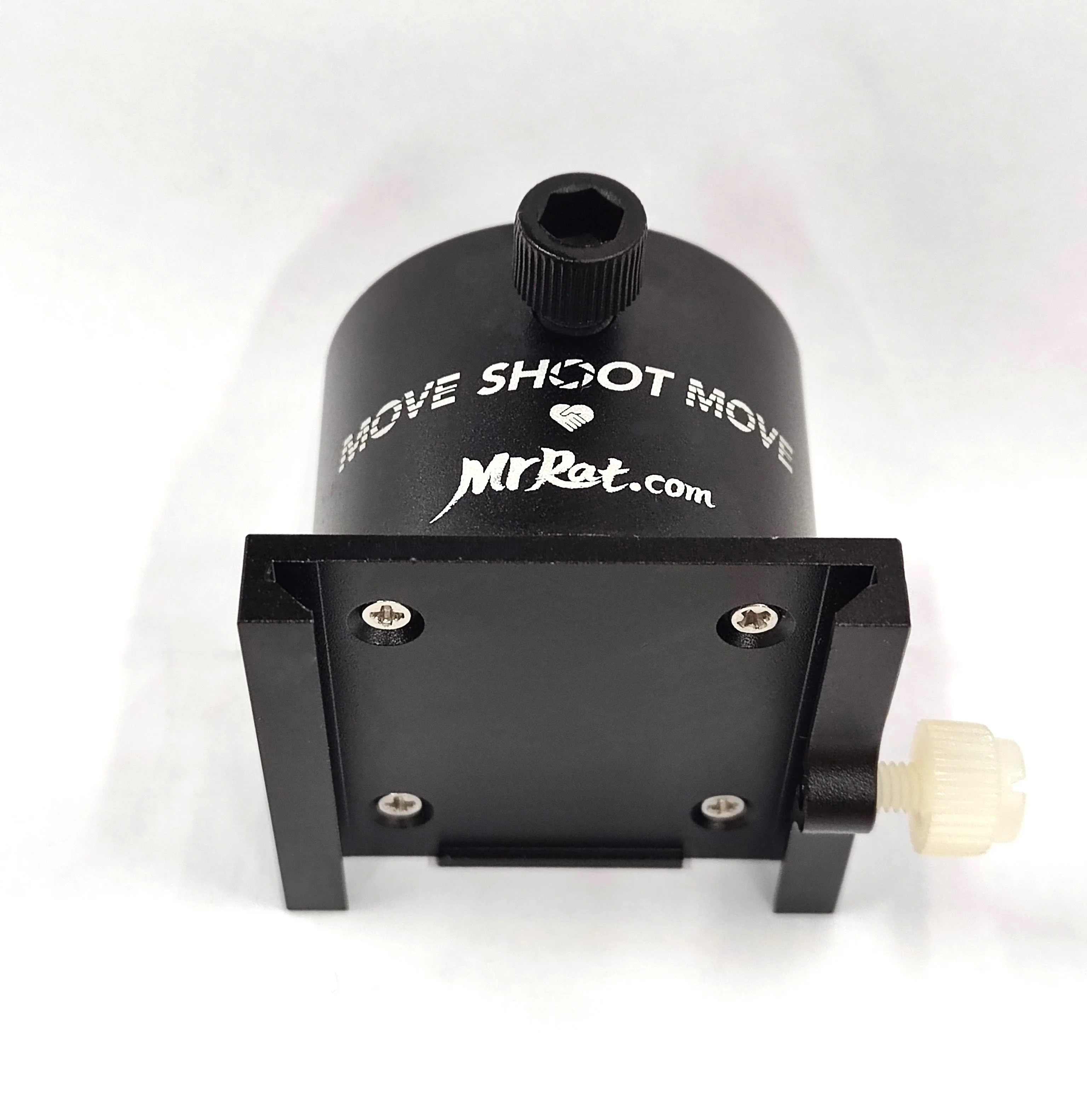

MSM Phone Mount for Polar Scope -Simple and Efficient Polar Alignment Aid

Thanks to Steven Barnes and Dylan O'Donnell, a new phone mount adapter has been developed to make polar alignment simpler and more efficient. This adapter allows you to securely attach a phone mount to MSM polar scope, Skywatcher Polar Scope and iOptron Skyguider Pro Polar Scope, Celestron Polar Scope and other polar scopes with eyepiece diameters of less than 30.1mm, enabling initial alignment through your phone, followed by precise adjustments using the polar scope.

Check out Dylan O'Donnell's Review Feedback for MSM Phone Mount Adapter kit for Polar Scope 🤗

Dimensions:

• Color: Black
• Diameter: ~30.1mm
• Depth: ~30.4mm
• Included Screws:
  • M4-8 screw × 1
  • M6-8 screw × 1
  • M2-6 Phillips Flat Head Screw × 4
• Weight: 51.8 g
• Polar Scope connection: Compatible with MSM Polar Scope, Skywatcher Polar Scope and iOptron Skyguider Pro Polar Scope, Celestron Polar Scope and other polar scopes with eyepiece diameters of less than 30.1mm.

• Phone Mount connection: Compatible only with MSM Phone Mount

Key Features:

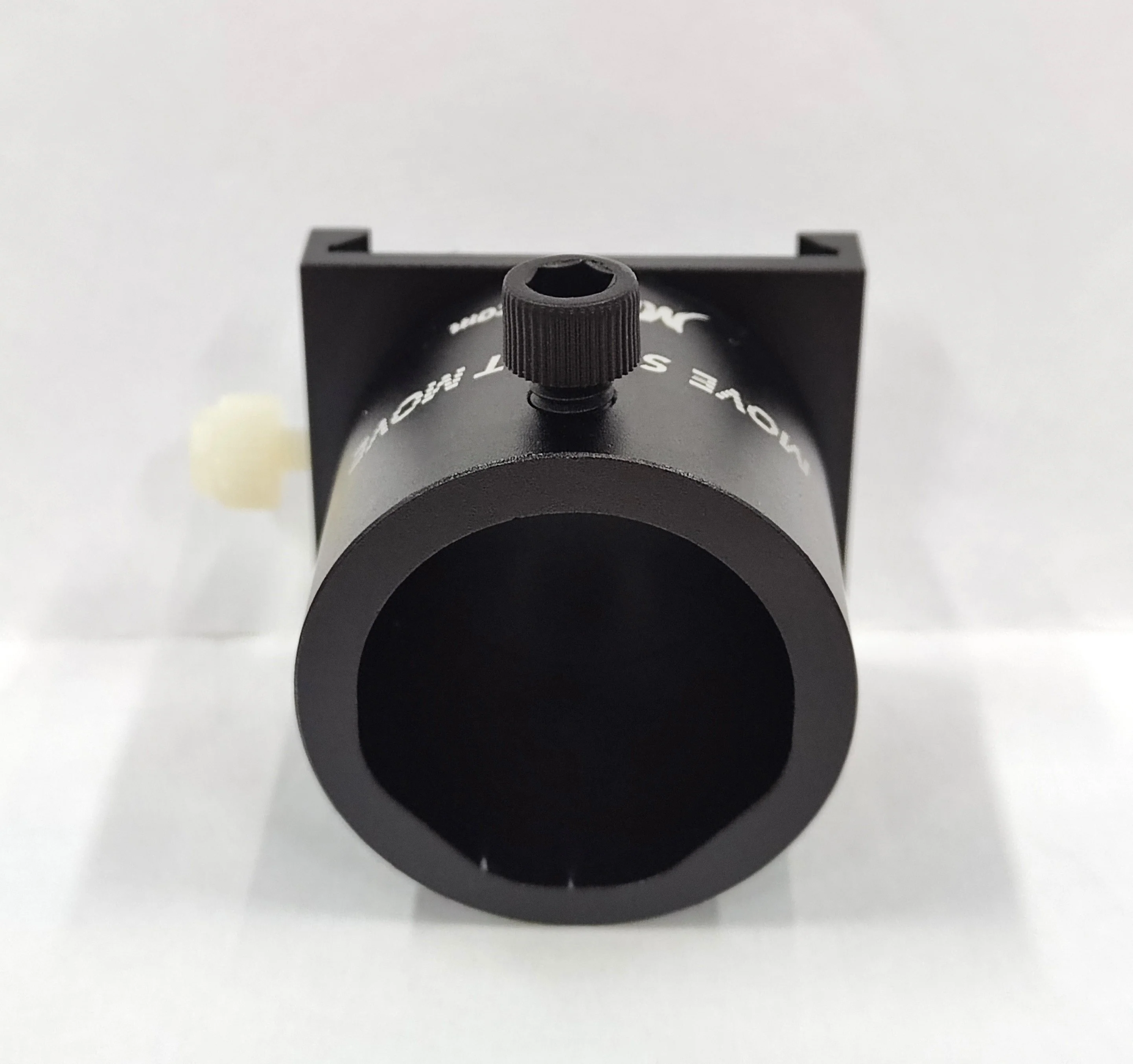

• Stabilized Fit: The bottom of the polar scope end is trapezoid-shaped, ensuring stability and preventing slipping.
• Anti-Loss Blocker: The phone mount end has a blocker to prevent accidental drops or loss.

Compatible Polar Scopes:

✅ Sky-Watcher: Star Adventurer GTi, Star Adventurer, Star Adventurer 2i, Star Adventurer Mini, EQ6-R Pro, and other models with polar scope
✅ iOptron: SkyGuider Pro (contact [email protected] for other models)
✅ Celestron: CGEM, CGEM II, CGEM DX series

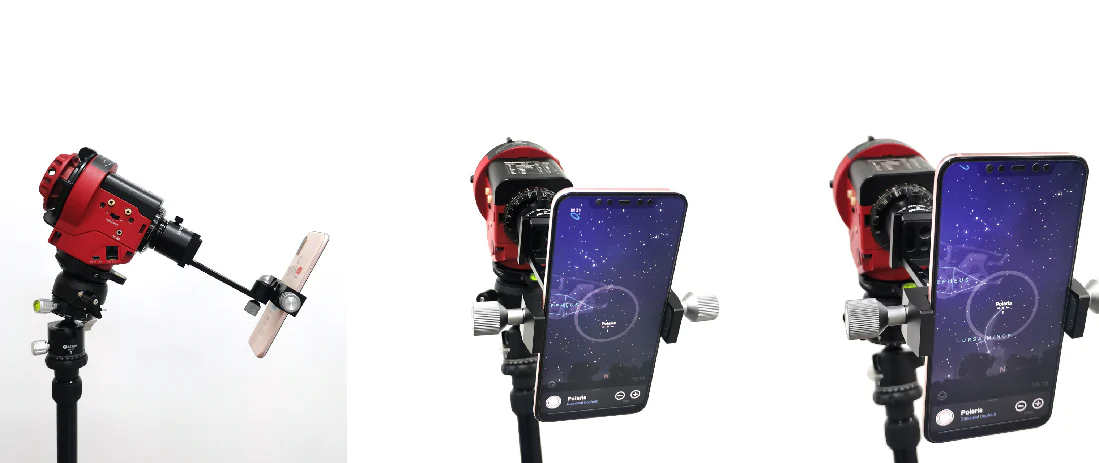

How to Use the Phone Mount Adapter:

How to Attach the Phone Mount Adapter Kit on Skywatcher Polar Scope?

1. Take off the protective cover of Star Adventurer 2i

2. Attach MSM Phone Mount Adapter

3. Install MSM phone mount to the adapter

4. Installation done!

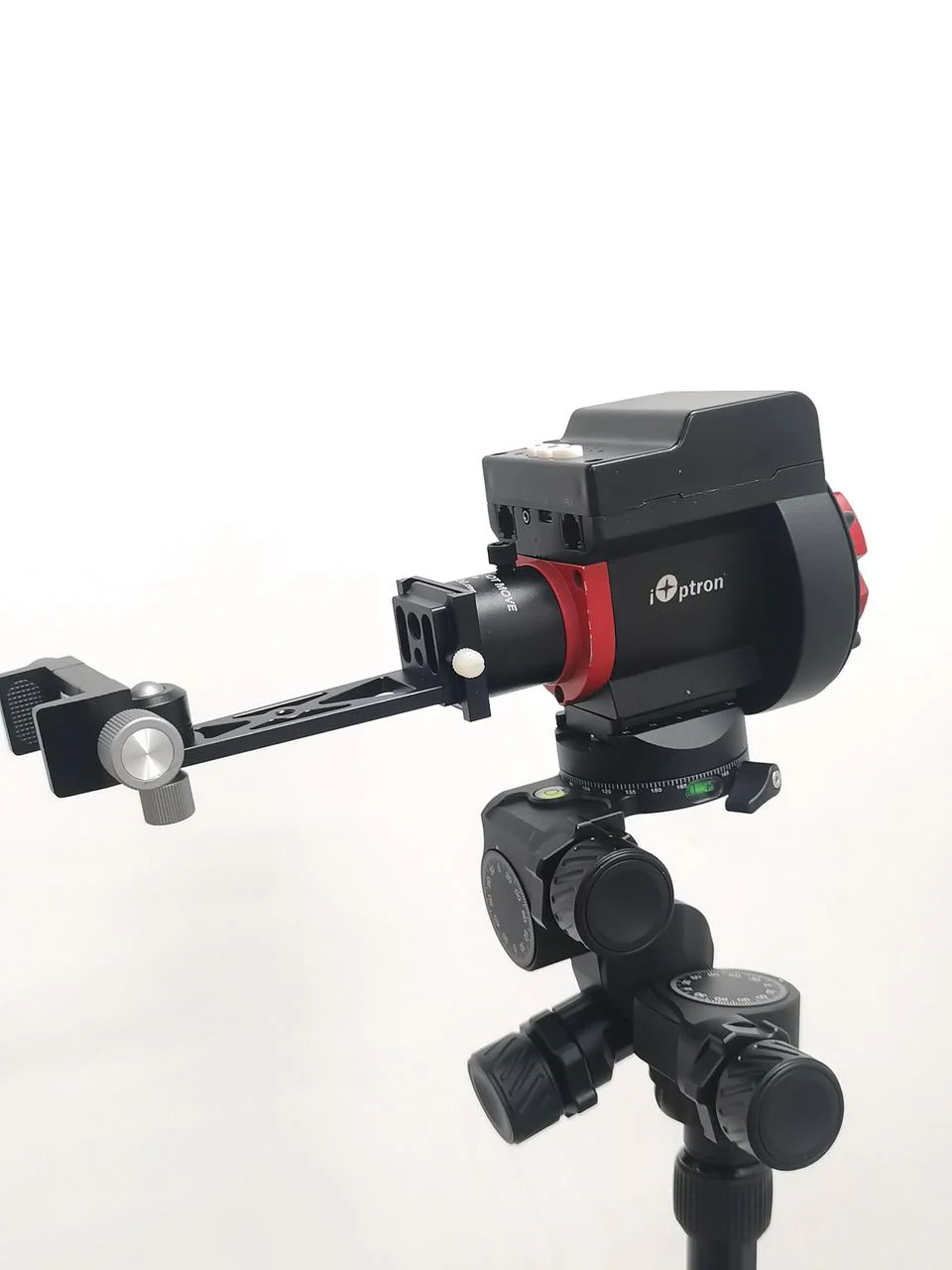

How to Attach the Phone Mount Adapter Kit on iOptron Skyguider Pro Polar Scope?

1. Attach MSM Phone Mount Adapter

2. Install MSM phone mount to the adapter

3. Installation done!
